ISPMACH4000B, 3.3V/2.5V/1.8V In-System Programmable SuperFAST High Density PLDs

ispMACH 4000V/B/C/Z Family ® November 2007 Coolest Power C TM 3.3V/2.5V/1.8V In-System Programmable SuperFAST TM High Density PLDs Data Sheet DS102.

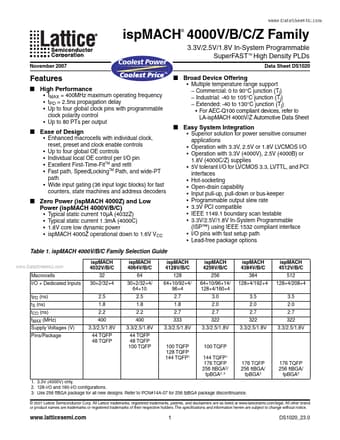

datasheet Preview Page 1 from Datasheet4u.com

ISPMACH4000B_LatticeSemiconductor.pdf

ISPMACH4000B Datasheet Preview — Preview of ISPMACH4000B PDF

Datasheet Details

Part number:

ISPMACH4000B

Manufacturer:

Lattice Semiconductor

File Size:

556.79 KB

Description:

3.3V/2.5V/1.8V In-System Programmable SuperFAST High Density PLDs

Features

* High Performance
* Broad Device Offering
* Multiple temperature range support
* Commercial: 0 to 90°C junction (Tj)
* Industrial: -40 to 105°C junction (Tj)
* Extended: -40 to 130°C junction (Tj)
* For AEC-Q100 compliant devices, refer to LA-ispMACH

Applications

* Operation with 3.3V, 2.5V or 1.8V LVCMOS I/O
* Operation with 3.3V (4000V), 2.5V (4000B) or 1.8V (4000C/Z) supplies
* 5V tolerant I/O for LVCMOS 3.3, LVTTL, and PCI interfaces
* Hot-socketing
* Open-drain capability
* Input pull-up, pull-down or bus-
