ispGDX80A-5T100 Datasheet - Lattice Semiconductor

ispGDX80A-5T100 In-System Programmable Generic Digital CrosspointTM

The ispGDX architecture provides a family of fast, flexible programmable devices to address a variety of systemlevel digital signal routing and interface requirements including: * Multi-Port Multiprocessor Interfaces * Wide Data and Address Bus Multiplexing (e.g. 4:1 High-Speed Bus M.

ispGDX80A-5T100 Features

* IN-SYSTEM PROGRAMMABLE GENERIC DIGITAL CROSSPOINT FAMILY

* Advanced Architecture Addresses Programmable PCB Interconnect, Bus Interface Integration and Jumper/Switch Replacement

* Three Device Options: 80 to 160 Programmable I/O Pins

* “Any Input to Any Output” Rout

ispGDX80A-5T100_LatticeSemiconductor.pdf

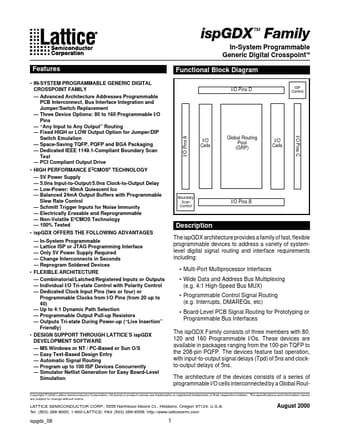

Preview of ispGDX80A-5T100 PDF
ispGDX80A-5T100 Datasheet Preview Page 2 ispGDX80A-5T100 Datasheet Preview Page 3

Datasheet Details

Part number:

ispGDX80A-5T100

Manufacturer:

Lattice Semiconductor

File Size:

326.07 KB

Description:

In-system programmable generic digital crosspointtm.
