ispLSI2064E, ispLSI2064E-100LT100 In-System Programmable SuperFAST High Density PLD

ispLSI2064E Description

ispLSI® 2064E In-System Programmable SuperFAST™ High Density PLD .
0139/2064E The ispLSI 2064E is a High Density Programmable Logic Device.

ispLSI2064E Features

* SuperFAST HIGH DENSITY IN-SYSTEM PROGRAMMABLE LOGIC
* 2000 PLD Gates
* 64 I/O Pins, Four Dedicated Inputs
* 64 Registers
* High Speed Global Interconnect
* Wide Input Gating for Fast Counters, State Machines, Address Decoders, etc.
* Small Lo

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ispLSI2064E, ispLSI2064E-100LT100. Please refer to the document for exact specifications by model.

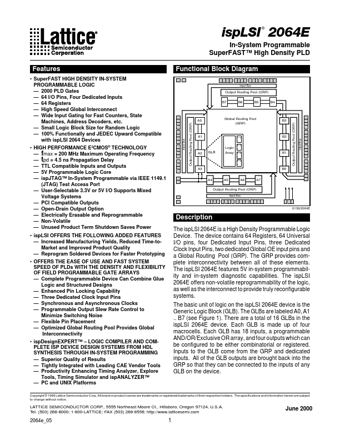

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ispLSI2064E, ispLSI2064E-100LT100
Manufacturer
Lattice Semiconductor
File Size
142.38 KB
Datasheet
ispLSI2064E-100LT100_LatticeSemiconductor.pdf
Description
In-System Programmable SuperFAST High Density PLD
Note
This datasheet PDF includes multiple part numbers: ispLSI2064E, ispLSI2064E-100LT100.
Please refer to the document for exact specifications by model.
