22V10 HighPerformanceE2CMOSPLDGenericArrayLogic

Description

Specifications GAL22V10 GAL22V10 High Performance E2CMOS PLD Generic Array Logic™ .
The GAL22V10, at 4ns maximum propagation delay time, combines a high performance CMOS process with Electrically Erasable (E2) floating gate technology.

📥 Download Datasheet

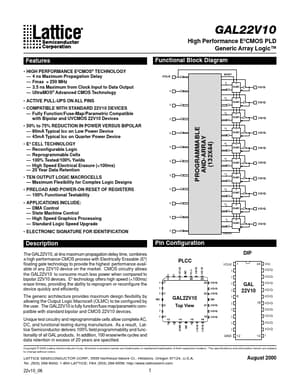

22V10 Datasheet Preview — Preview of 22V10 PDF

Datasheet Specifications

Part number: 22V10
Manufacturer: LatticeSemiconductor
File Size: 386.46 KB
Datasheet: 22V10_LatticeSemiconductor.pdf
Description: HighPerformanceE2CMOSPLDGenericArrayLogic

Features

* HIGH PERFORMANCE E2CMOS® TECHNOLOGY
* 4 ns Maximum Propagation Delay
* Fmax = 250 MHz
* 3.5 ns Maximum from Clock Input to Data Output
* UltraMOS® Advanced CMOS Technology
* ACTIVE PULL-UPS ON ALL PINS I Functional Block Diagram I/CLK RESET 8 OLMC

Applications

* INCLUDE:
* DMA Control
* State Machine Control
* High Speed Graphics Processing
* Standard Logic Speed Upgrade
* ELECTRONIC SIGNATURE FOR IDENTIFICATION ESCRIPTION 12 I OLMC I/O/Q PROGRAMMABLE AND-ARRAY (132X44) 14 OLMC I I/O/Q 16 OLMC I I/O/Q I 1
