LC4021-LY Datasheet - Laurel

LC4021-LY LCD

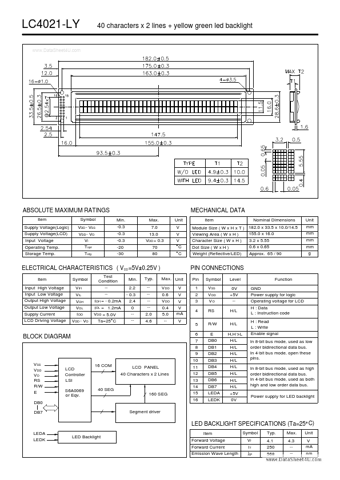

LC4021-LY www.DataSheet4U.com 40 characters x 2 lines + yellow green led backlight ABSOLUTE MAXIMUM RATINGS Item Supply Voltage(Logic) Supply Voltage(LCD) Input Voltage Operating Temp. Storage Temp. Symbol VDD - VSS VDD - VO VI Topr Tstg Min. -0.3 -0.3 -0.3 -20 -30 Max. 7.0 13.0 VDD + 0.3 70 80 Unit V V V °C °C MECHANICAL DATA Item Nominal Dimensions Unit mm mm mm mm g Module Size ( W x H x T ) 182.0 x 33.5 x 10.0/14.5 155.0 x 16.0 Viewing Area ( W x H ) Character Size ( W x H ) 3.2 x 5.55 0..

LC4021-LY_Laurel.pdf

LC4021-LY Datasheet Preview — Preview of LC4021-LY PDF

Datasheet Details

Part number:

LC4021-LY

Manufacturer:

Laurel

File Size:

61.63 KB

Description:

Lcd.
