LCG75PIS120E2B - 1200V 75A PIM Module

Datasheet Summary

Features

  • VCE(sat) with positive temperature coefficient.
  • Low VCE(sat).
  • Low switching losses.
  • High current capability.
  • Short circuit rated Typical.

📥 Download Datasheet

Datasheet preview – LCG75PIS120E2B

Datasheet Details

Part number LCG75PIS120E2B
Manufacturer Lcore
File Size 1.17 MB
Description 1200V 75A PIM Module
Datasheet download datasheet LCG75PIS120E2B Datasheet

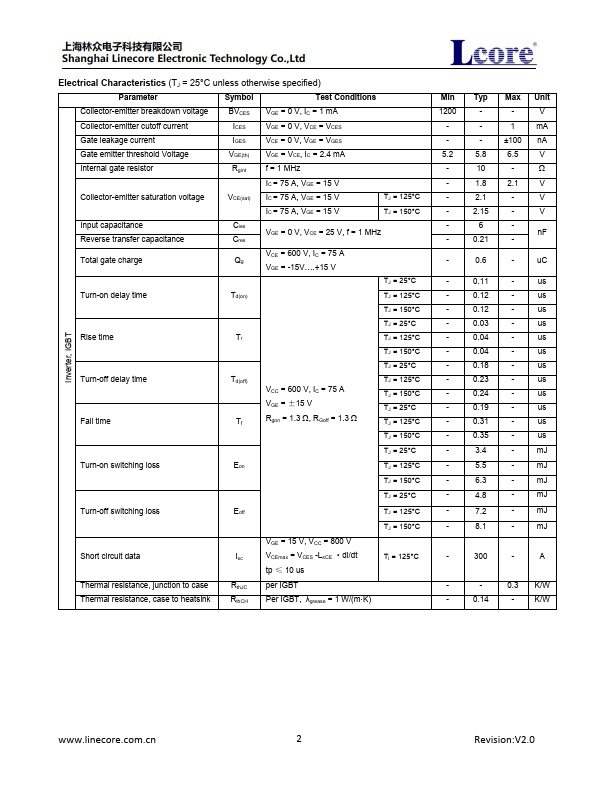

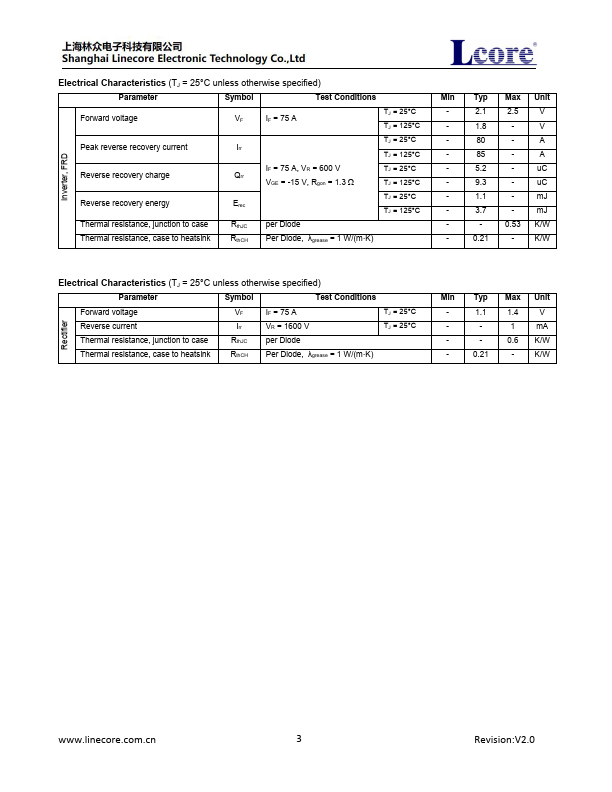

Additional preview pages of the LCG75PIS120E2B datasheet.

📁 Similar Datasheet

  • LCGH9RM - OSTAR Projection Cube (OSRAM)
Other Datasheets by Lcore

Full PDF Text Transcription

Click to expand full text

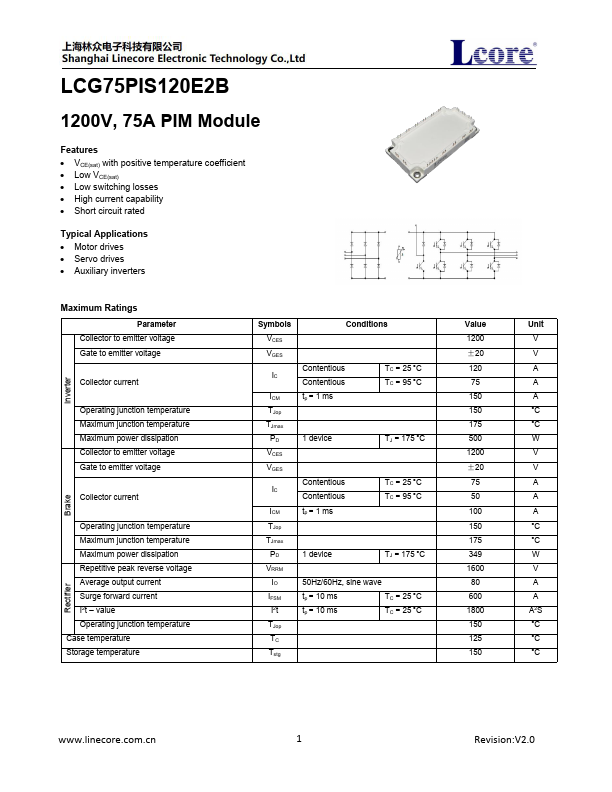

LCG75PIS120E2B 1200V, 75A PIM Module Features  VCE(sat) with positive temperature coefficient  Low VCE(sat)  Low switching losses  High current capability  Short circuit rated Typical Applications  Motor drives  Servo drives  Auxiliary inverters Rectifier Brake Inverter Maximum Ratings Parameter Collector to emitter voltage Gate to emitter voltage Collector current Operating junction temperature Maximum junction temperature Maximum power dissipation Collector to emitter voltage Gate to emitter voltage Collector current Operating junction temperature Maximum junction temperature Maximum power dissipation Repetitive peak reverse voltage Average output current Surge forward current I2t – value Operating junction temperature Case temperature Storage temperature Symbols VCES VGES I
