LC1209 - 60V Input / 5V Output Linear Regulator

Description

LC1209 is a three-terminal positive regulator with an output voltage of 5.0V and output current up to 100mA.

Features

  • a typical output tolerance of ±5%. And its input voltage can stand a voltage as high as 60V. LC1209 includes high accuracy voltage reference, error amplifier, TSD circuit and output driver module. LC1209 offers thermal shut down functions to assure the stability of chip and power system. LC1209 is available in SOT89-3,TO-92 and TO-220 power packages。.

📥 Download Datasheet

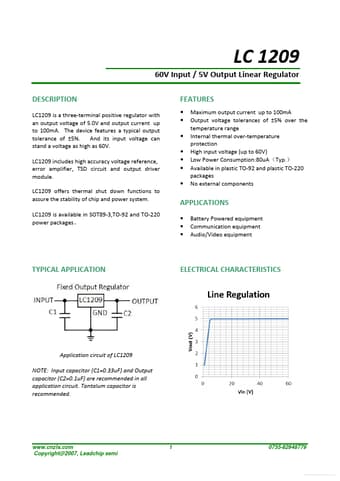

Datasheet preview – LC1209

Datasheet Details

Part number LC1209
Manufacturer Leadchip semi
File Size 659.29 KB
Description 60V Input / 5V Output Linear Regulator
