LEGM300BA120L2H1 IGBT

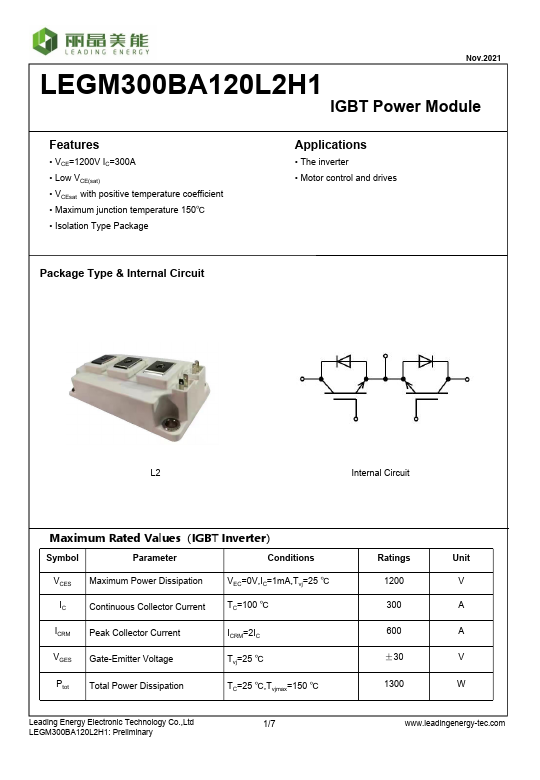

📥 Download Datasheet Datasheet Preview Page 1

Description

Nov.2021 LEGM300BA120L2H1 IGBT Power Module .

📥 Download Datasheet

Preview of LEGM300BA120L2H1 PDF

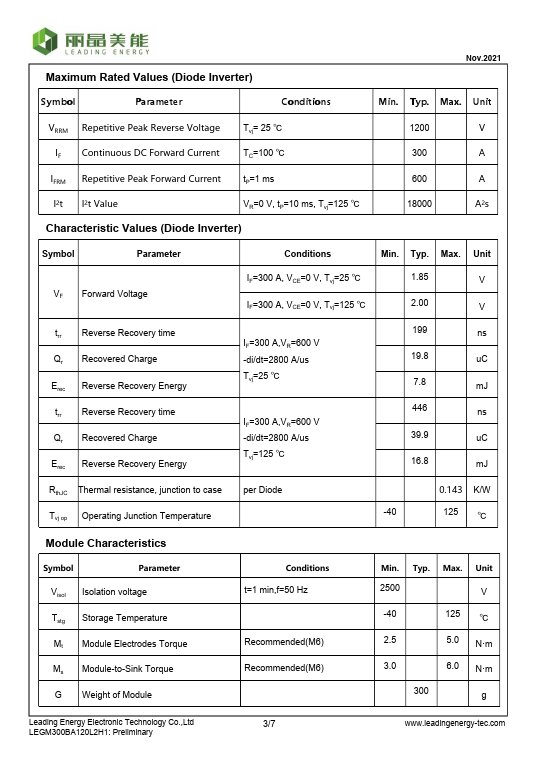

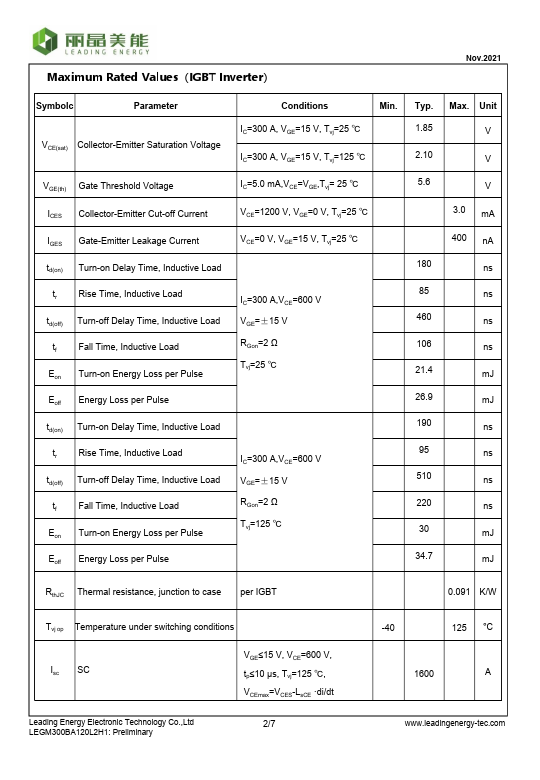

datasheet Preview Page 2 datasheet Preview Page 3

Features

* VCE=1200V IC=300A
* Low VCE(sat)
* VCEsat with positive temperature coefficient
* Maximum junction temperature 150℃

Applications

* The inverter
* Motor control and drives Package Type & Internal Circuit L2 Internal Circuit Maximum Rated Values（IGBT Inverter） Symbol Parameter Conditions VCES Maximum Power Dissipation VEC=0V,IC=1mA,Tvj=25 ℃ IC Continuous Collector Current TC=100 ℃ ICRM Peak Collecto
