LEGM75BF120L5H IGBT

📥 Download Datasheet Datasheet Preview Page 1

Description

LEGM75BF120L5H Jan.2021 IGBT Power Module .

📥 Download Datasheet

Preview of LEGM75BF120L5H PDF

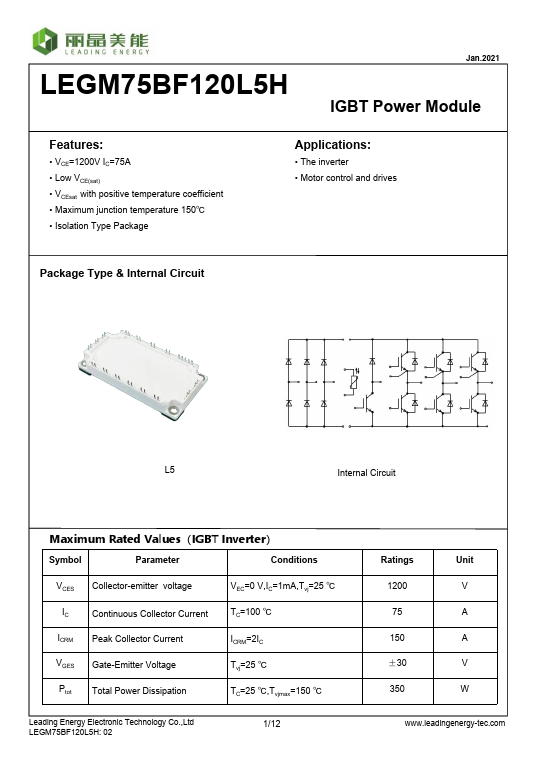

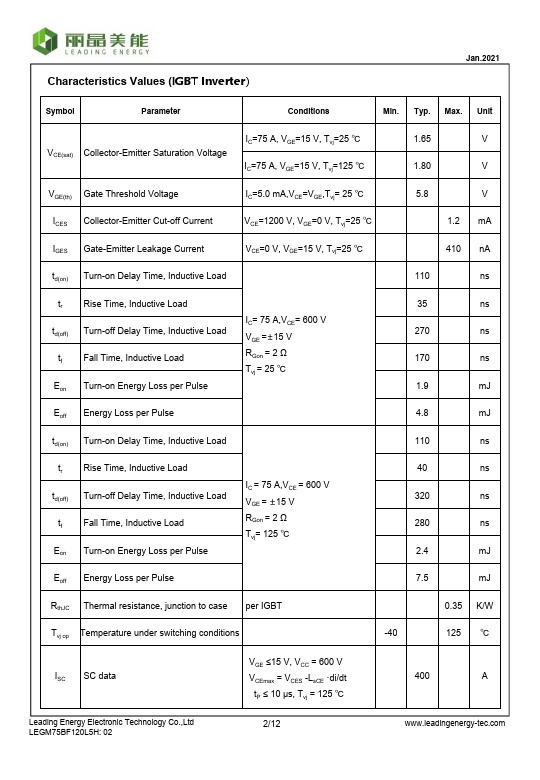

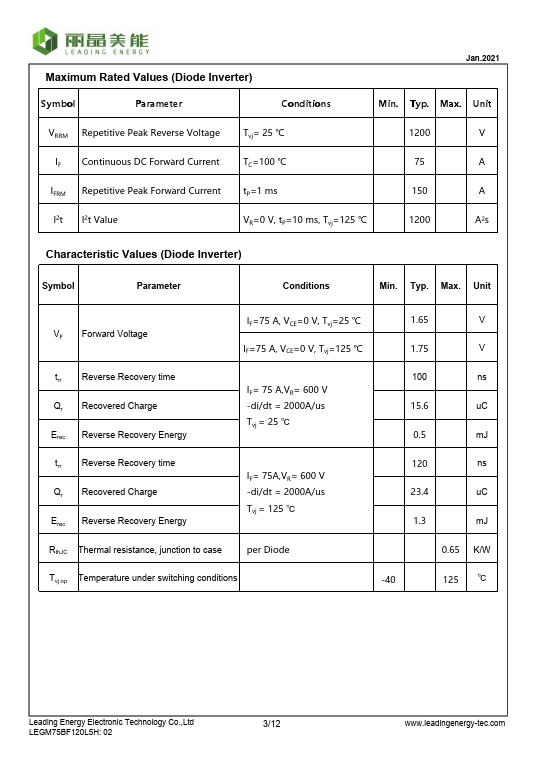

datasheet Preview Page 2 datasheet Preview Page 3

Features

* VCE=1200V IC=75A
* Low VCE(sat)
* VCEsat with positive temperature coefficient
* Maximum junction temperature 150℃

Applications

* The inverter
* Motor control and drives Package Type & Internal Circuit L5 Internal Circuit Maximum Rated Values（IGBT Inverter） Symbol Parameter Conditions VCES Collector-emitter voltage VEC=0 V,IC=1mA,Tvj=25 ℃ IC Continuous Collector Current TC=100 ℃ ICRM Peak Collec
