LD5530R Green-Mode PWM Controller

LD5530R Description

LD5530R 6/6/2013 Green-Mode PWM Controller with Frequency Swapping and Integrated Protections Rev.00 General .
The LD5530R is built-in with several functions, protection and EMI-improved solution in a tiny package.

LD5530R Features

* more protections like OLP (Over Load Protection) and OVP (Over Voltage Protection) to prevent circuit damage occurred under abnormal conditions. Furthermore, the Frequency Swapping function is to reduce the noise level and thus helps the power circuit designers to easily deal with the EMI filter des

LD5530R Applications

* Switching AC/DC Adaptor and Battery Charger Open Frame Switching Power Supply Typical Application AC input EMI Filter DC Output VCC OTP OUT LD5530R COMP GND CS/OVP photocoupler 1 Leadtrend Technology Corporation LD5530R-DS-00 June 2013 www. leadtrend. com. tw LD5530R Pin Configuratio

📥 Download Datasheet

Preview of LD5530R PDF

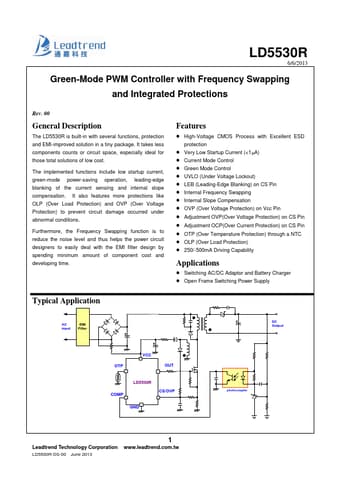

datasheet Preview Page 2 datasheet Preview Page 3
