LD7515L

Primary Side Quasi-Resonant BJT Controller

LD7515L Features

* Internal OTP (Over Temperature Protection) and OVP (Over Voltage Protection) to prevent the circuit from being damaged due to abnormal conditions. In most cases, the power supply with primary-side feedback controller would accompany with some serious load regulation effect. To deal with this problem

LD7515L General Description

The LD7515L is an excellent primary side feedback BJT controller with CV/CC operation, integrated with several functions of protections. It minimizes the component counts and is available in a tiny SOT-26 package. Those make it an ideal design for low cost applications. It provides functions of ultr.

LD7515L Datasheet (513.69 KB)

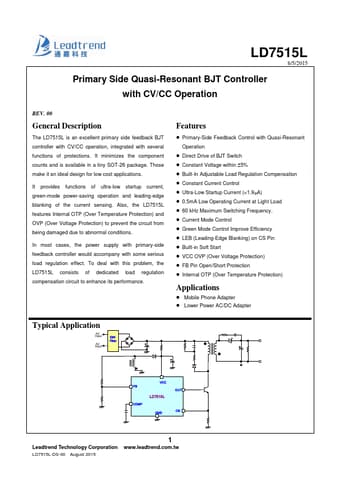

Preview of LD7515L PDF

Datasheet Details

Part number:

LD7515L

Manufacturer:

Leadtrend Technology

File Size:

513.69 KB

Description:

Primary side quasi-resonant bjt controller.
