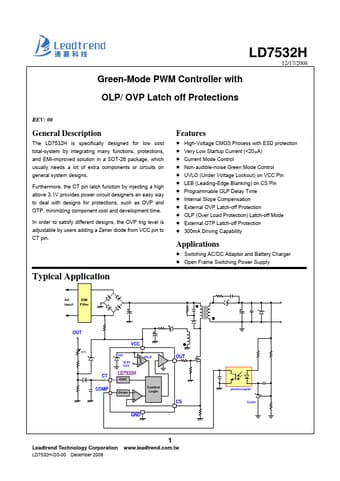

LD7532H Datasheet, Controller, Leadtrend Technology

LD7532H Features

• Controller z High-Voltage CMOS Process with ESD protection z Very Low Startup Current (<20μA) z Current Mode Control z Non-audible-noise Green Mode Control z UVLO (Under Voltage Lockout) on VCC Pi

PDF File Details

Part number:

LD7532H

Manufacturer:

Leadtrend Technology

File Size:

251.21kb

Download:

📄 Datasheet

Description:

Green-mode pwm controller. The LD7532H is specifically designed for low cost total-system by integrating many functions, protections, and EMI-improved solution

LD7532H Application

• Applications z Switching AC/DC Adaptor and Battery Charger z Open Frame Switching Power Supply AC EMI input Filter OUT NTC CT COMP VCC 32V 16.0V
