LD7291 - WLED Driver

Description

The LD7291 is a high efficiency WLED driver to drive maximum 3 WLEDs from single or 2 battery cells.

By using the proprietary topology, the LD7291 can operate under as low as 0.85V to fully utilize the energy of battery.

Features

  • z Very few external components z Low ripple and low noise z Low start-up voltage, 0.85V at 1mA z Direct drive maximum 3 WLEDs z High efficiency.

📥 Download Datasheet

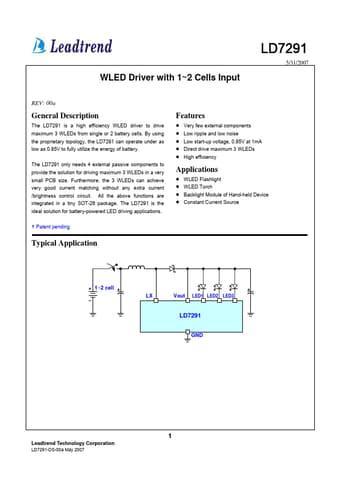

Datasheet preview – LD7291

Datasheet Details

Part number LD7291
Manufacturer Leadtrend
File Size 195.15 KB
Description WLED Driver
Datasheet download datasheet LD7291 Datasheet
Additional preview pages of the LD7291 datasheet.
