LD7577JA High Voltage Green-Mode PWM Controller

LD7577JA Description

LD7577JA 8/16/2010 High Voltage Green-Mode PWM Controller with Brown-Out Protection Rev.00b General .
The LD7577JA integrated several functions of protections, and EMI-improved solution in a SOP-7, SOP-8/or DIP-8 package.

LD7577JA Features

* more protections like OLP (Over Load Protection), OVP (Over Voltage Protection), and brownout protection to prevent the circuit being damaged from the abnormal conditions. Furthermore, the LD7577JA features frequency trembling to suppress the noise and is an excellent solution for EMI filter design.

📥 Download Datasheet

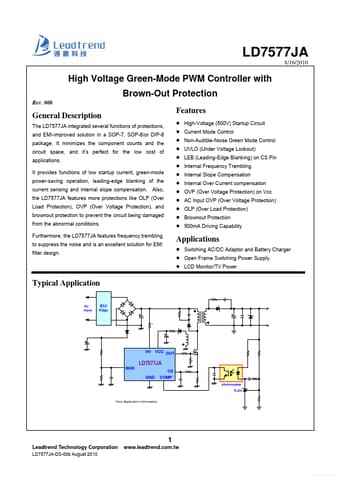

Preview of LD7577JA PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LD7577JA
Manufacturer
Leadtrend
File Size
400.94 KB
Datasheet
LD7577JA_Leadtrend.pdf
Description
High Voltage Green-Mode PWM Controller
