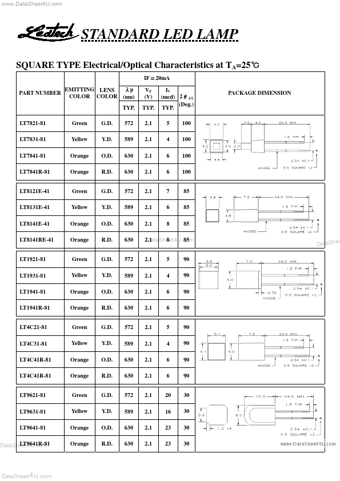

www.DataSheet4U.com STANDARD LED LAMP SQUARE TYPE Electrical/Optical Characteristics at TA=25℃ IF＝ 20mA PART NUMBER λp EMITTING LENS COLOR COLOR (nm) TYP.
LT7821-81 LT7831-81 LT7841-81 LT7841R-81 Green Yellow Orange Orange G.D.
Y.D.
O.D.
R.D.
572 589 630 630 VF (V) TYP.
2.1 2.1 2.1 2.1 IV (mcd) 2θ 1/2 (Deg.) TYP.
5 4 6 6 100 100 100 100 PACKAGE DIMENSION LT8121E-41 LT8131E-41 LT8141E-41 LT8141RE-41 Green Yellow Orange Orange G.D.
Y.D.
O.D.
R.D.
572 589 630 630 2.1 2.1 2.1 7 6 8 85 85 85
