2R230SA-6 Datasheet - Leiditech

2R230SA-6 Gas Discharge Tube

Gas Discharge Tube 2R075~2R800SA-6 Series GDTs (Gas Discharge Tubes) are placed in front of, and in parallel with, sensitive telecom equipment such as power lines, communication lines, signal lines and data transmission lines to help protect them from damage caused by transient surge voltages that may result from lightning strikes and equipment switching operations.These devices do not influence the signal in normal operation. However, in the event of an overvoltage surge, such as a lightning st.

2R230SA-6 Features

* 4.2

* 6.2mm devices

* Broad voltage range from 75V-800V

* Various form factors: surface mount, axial leads, no leads

* Low capacitance and insertion loss

* RoHS compliant

* Devices tested per ITU K.12 recommendations

* Non-radioactive mate

2R230SA-6 Datasheet (316.42 KB)

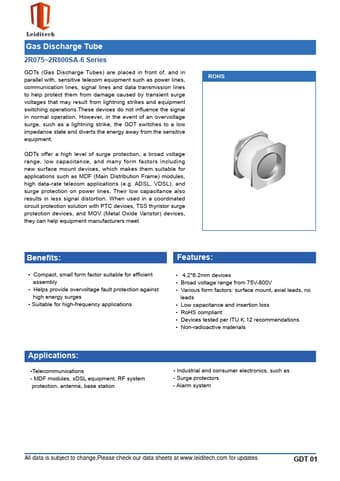

2R230SA-6 Datasheet Preview — Preview of 2R230SA-6 PDF

Datasheet Details

Part number:

2R230SA-6

Manufacturer:

Leiditech

File Size:

316.42 KB

Description:

Gas discharge tube.
