3KP120A, 3KP5.0A - 3000W Transient Voltage Suppressor

Leiditech

📥 Download Datasheet

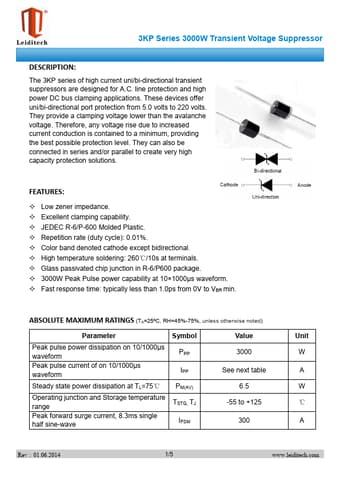

3KP120A Datasheet Preview — This datasheet PDF includes multiple part numbers: 3KP120A, 3KP5.0A. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	3KP120A, 3KP5.0A
Manufacturer	Leiditech
File Size	675.04 KB
Description	3000W Transient Voltage Suppressor
Datasheet	3KP5.0A-leiditech.pdf
Note	This datasheet PDF includes multiple part numbers: 3KP120A, 3KP5.0A. Please refer to the document for exact specifications by model.

3KP120A Product details

Description

The 3KP series of high current uni/bi-directional transient suppressors are designed for A.C.

Features

Low zener impedance.
Excellent clamping capability.
JEDEC R-6/P-600 Molded Plastic.
Repetition rate (duty cycle): 0.01%.
Color band denoted cathode except bidirectional.
High temperature soldering: 260℃/10s at terminals.
Glass passivated chip junction in R-6/P600 package.
3000W Peak Pulse power capability at 10×1000μs waveform.
Fast response.
