3KP180A, 3KP5.0A Datasheet - Leiditech

3KP180A 3000W Transient Voltage Suppressor

The 3KP series of high current uni/bi-directional transient suppressors are designed for A.C. line protection and high power DC bus clamping applications. These devices offer uni/bi-directional port protection from 5.0 volts to 220 volts. They provide a clamping voltage lower than the avalanche vol.

3KP180A Features

* Low zener impedance.

* Excellent clamping capability.

* JEDEC R-6/P-600 Molded Plastic.

* Repetition rate (duty cycle): 0.01%.

* Color band denoted cathode except bidirectional.

* High temperature soldering: 260℃/10s at terminals.

* Glass passivated chip junction in R-

3KP5.0A-leiditech.pdf

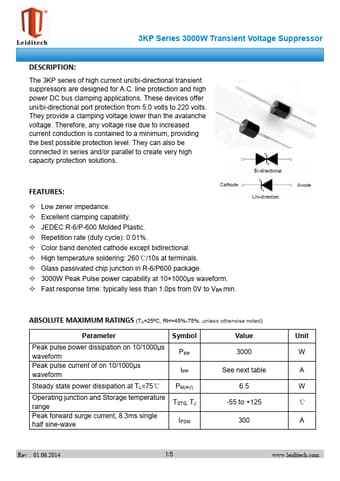

3KP180A Datasheet Preview — This datasheet PDF includes multiple part numbers: 3KP180A, 3KP5.0A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

3KP180A, 3KP5.0A

Manufacturer:

Leiditech

File Size:

675.04 KB

Description:

3000w transient voltage suppressor.

Note:

This datasheet PDF includes multiple part numbers: 3KP180A, 3KP5.0A.
Please refer to the document for exact specifications by model.
