3KP30A, 3KP5.0A, 3000W Transient Voltage Suppressor

3KP Series 3000W Transient Voltage Suppressor .
The 3KP series of high current uni/bi-directional transient suppressors are designed for A.

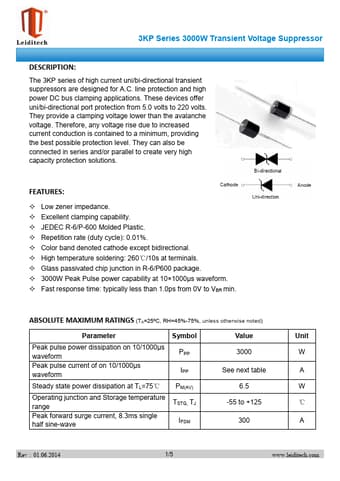

3KP5.0A-leiditech.pdf

3KP30A Datasheet Preview — This datasheet PDF includes multiple part numbers: 3KP30A, 3KP5.0A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

3KP30A, 3KP5.0A

Manufacturer:

Leiditech

File Size:

675.04 KB

Description:

3000W Transient Voltage Suppressor

Note:

This datasheet PDF includes multiple part numbers: 3KP30A, 3KP5.0A.
Please refer to the document for exact specifications by model.

Features

* Low zener impedance.
* Excellent clamping capability.
* JEDEC R-6/P-600 Molded Plastic.
* Repetition rate (duty cycle): 0.01%.
* Color band denoted cathode except bidirectional.
* High temperature soldering: 260℃/10s at terminals.
* Glass passivated chip junction in R-

Applications

* These devices offer uni/bi-directional port protection from 5.0 volts to 220 volts. They provide a clamping voltage lower than the avalanche voltage. Therefore, any voltage rise due to increased current conduction is contained to a minimum, providing the best possible protection level. They can als
