LM8012P - P-Channel Enhancement Mode Power MOSFET

LM8012P Description

LM8012P P-Channel Enhancement Mode Power MOSFET 1..

LM8012P Features

* Low Profile DFN 2.0x2.0x0.62 mm for Board Space Saving
* Ultra Low RDS(on)
* This is a Pb-Free Device

LM8012P Applications

* Battery Switch
* High Side Load Switch 3. ORDERING INFORMATION Device LM8012P Marking 32 Shipping 4000/Tape&Reel 32 = Device Code Y = Date Code
* 4. MAXIMUM RATINGS(Ta = 25ºC unless otherwise stated) Parameter Symbol Limits Unit Drain
* to
* Source Voltage VDSS 1

📥 Download Datasheet

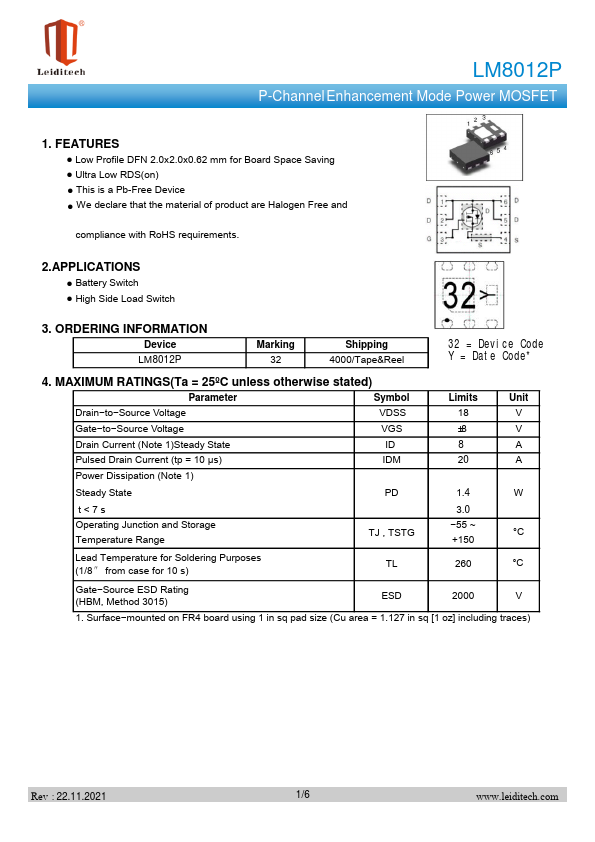

Preview of LM8012P PDF

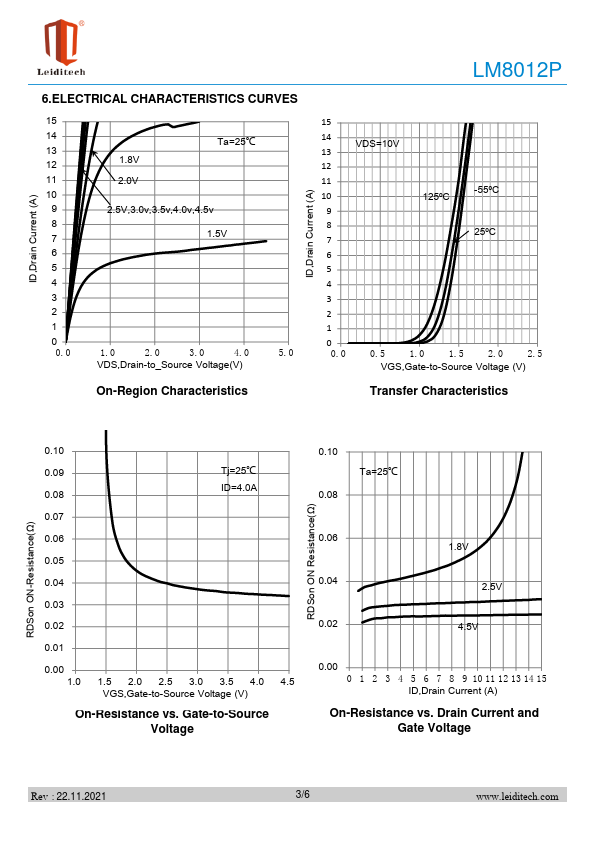

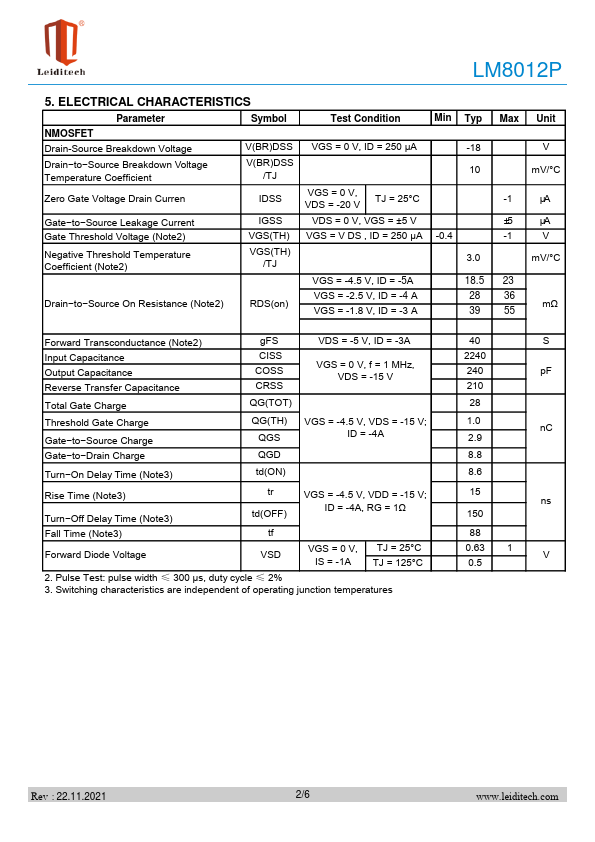

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LM8012P
Manufacturer
Leiditech
File Size
556.45 KB
Datasheet
LM8012P-Leiditech.pdf
Description
P-Channel Enhancement Mode Power MOSFET
