PESD5V0C1USF

Ultra Low Capacitance Bi-directional TVS Diode

PESD5V0C1USF Features

* Ultra small package: 0.6x0.3x0.3mm

* Ultra low capacitance: 0.25pF typical

* Ultra low leakage: nA level

* Low operating voltage: 5V

* Low clamping voltage

* 2-pin leadless package

* Complies with following standards:

* IEC 61000-4-2 (ESD) immunity test Air disc

PESD5V0C1USF Datasheet (2.01 MB)

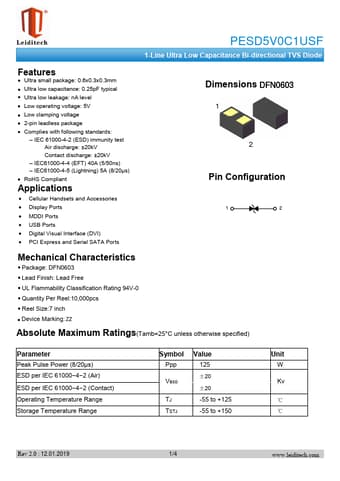

Preview of PESD5V0C1USF PDF

Datasheet Details

Part number:

PESD5V0C1USF

Manufacturer:

Leiditech

File Size:

2.01 MB

Description:

Ultra low capacitance bi-directional tvs diode.
