SD15 - 500W Unidirectional TVS Diode

Datasheet Summary

Features

  • Ultra low leakage: nA level.
  • Operating voltage: 15V.
  • Low clamping voltage.
  • Complies with following standards:.
  • IEC 61000-4-2 (ESD) immunity test Air discharge: ±15kV Contact discharge: ±8kV.
  • IEC61000-4-4 (EFT) 40A (5/50ns).
  • IEC61000-4-5 (Lightning) 12A (8/20μs).
  • RoHS Compliant.

📥 Download Datasheet

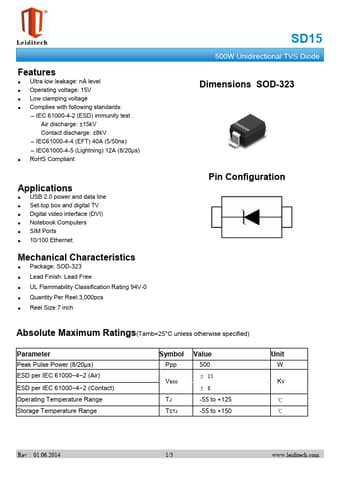

Datasheet preview – SD15

Datasheet Details

Part number SD15
Manufacturer Leiditech
File Size 135.08 KB
Description 500W Unidirectional TVS Diode
Datasheet download datasheet SD15 Datasheet
Additional preview pages of the SD15 datasheet.

📁 Similar Datasheet

  • SD15 - STANDARD CAPACITANCE TVS ARRAY / ESD ARRAY (KD)
  • SD15 - Unidirectional TVS Diode (UDF)
  • SD1500C04L - STANDARD RECOVERY DIODE (International Rectifier)
  • SD1500C04L - Standard Recovery Diodes (Vishay)
  • SD1500C08L - STANDARD RECOVERY DIODE (International Rectifier)
  • SD1500C08L - Standard Recovery Diodes (Vishay)
  • SD1500C12L - STANDARD RECOVERY DIODE (International Rectifier)
  • SD1500C12L - Standard Recovery Diodes (Vishay)
  • SD1500C16L - STANDARD RECOVERY DIODE (International Rectifier)
  • SD1500C16L - Standard Recovery Diodes (Vishay)
Other Datasheets by Leiditech

Full PDF Text Transcription

Click to expand full text
Features ● Ultra low leakage: nA level ● Operating voltage: 15V ● Low clamping voltage ● Complies with following standards: – IEC 61000-4-2 (ESD) immunity test Air discharge: ±15kV Contact discharge: ±8kV – IEC61000-4-4 (EFT) 40A (5/50ns) – IEC61000-4-5 (Lightning) 12A (8/20μs) ● RoHS Compliant Applications ● USB 2.
