SMDJ100A - 3000W Transient Voltage Suppressor

Download the SMDJ100A datasheet PDF. This datasheet also covers the SMDJ5.0A variant, as both devices belong to the same 3000w transient voltage suppressor family and are provided as variant models within a single manufacturer datasheet.

Description

TVS diodes can be used in a wide range of applications which like consumer electronic products, automotive industries, munitions, telecommunications, aerospace industries, and intelligent control systems.

Features

  • Glass passivated or planar junction.
  • Excellent clamping capability.
  • Repetition rate (duty cycle): 0.01%.
  • Typical IR less than 1μA above 10V.
  • Low profile package and low inductance.
  • 3000W peak pulse power capability at 10×1000μs waveform.
  • Fast response time: typically less than 1.0ps from 0V to VBR min.
  • High temperature soldering: 260℃/10s at terminals.
  • Plastic package has Underwriters Laboratory Flammability 94V-0.
  • For surface mounted.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SMDJ5.0A-leiditech.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SMDJ100A
Manufacturer Leiditech
File Size 785.64 KB
Description 3000W Transient Voltage Suppressor
Datasheet download datasheet SMDJ100A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SMDJ100A SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR DIODE Sunmate
SMDJ100A Glass Passivated TVS JFDsemi
SMDJ100A Transient Voltage Suppressors MERITEK
SMDJ100A Surface Mount Transient Voltage Suppressors SOCAY
SMDJ100A 3000-WATT TVS Protek Devices

Other Datasheets by Leiditech

Part Number Description
SMDJ100CA 3000W Transient Voltage Suppressor
SMDJ10A 3000W Transient Voltage Suppressor
SMDJ10CA 3000W Transient Voltage Suppressor
SMDJ110A 3000W Transient Voltage Suppressor
SMDJ110CA 3000W Transient Voltage Suppressor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

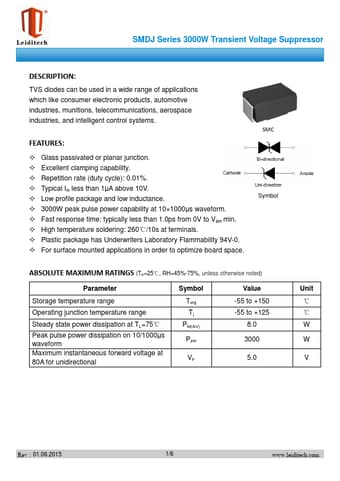

SMDJ Series 3000W Transient Voltage Suppressor DESCRIPTION: TVS diodes can be used in a wide range of applications which like consumer electronic products, automotive industries, munitions, telecommunications, aerospace industries, and intelligent control systems. FEATURES:  Glass passivated or planar junction.  Excellent clamping capability.  Repetition rate (duty cycle): 0.01%.  Typical IR less than 1μA above 10V.  Low profile package and low inductance.  3000W peak pulse power capability at 10×1000μs waveform.  Fast response time: typically less than 1.0ps from 0V to VBR min.  High temperature soldering: 260℃/10s at terminals.  Plastic package has Underwriters Laboratory Flammability 94V-0.  For surface mounted applications in order to optimize board space.
