FFM104 Datasheet - Leshan Radio Company

FFM104 1A FAST RECOVERY SMA DIODES

LESHAN RADIO COMPANY, LTD. FFM101 FFM107 1A 1A FAST RECOVERY SMA DIODES TYPE Marking VRRM(V) IF (A) FFM101 FF1 FFM102 FF2 FFM103 FF3 FFM104 FF4 FFM105 FF5 FFM106 FF6 FFM107 FF7 50 100 200 400 600 800 1000 1.0 VF(V) 1.3 Trr I F =1A, I R = 0.5A, I RR = 0.25A Trr Test Conditions: I F = 1A, I R= 0.5A, I RR = 0.25A IRMI(µA) 5.0 IP8M(A) 30 Trr(ns) 150 250 500 BA G E HF D C A .110(2.8) .086(2.2) B .067(1.7) .051(1.3) C .008 MAX (.2) D .091(2.3) .067(1.7) E .051(1.3) .008(.

FFM104 Datasheet (50.22 KB)

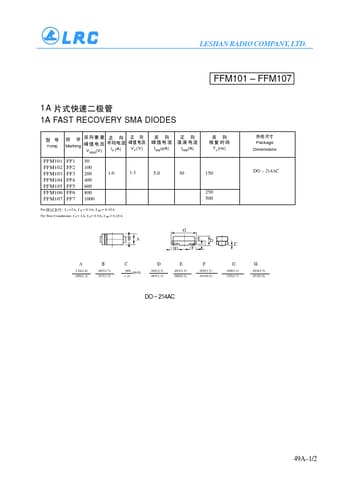

FFM104 Datasheet Preview — Preview of FFM104 PDF

Datasheet Details

Part number:

FFM104

Manufacturer:

Leshan Radio Company

File Size:

50.22 KB

Description:

1a fast recovery sma diodes.
