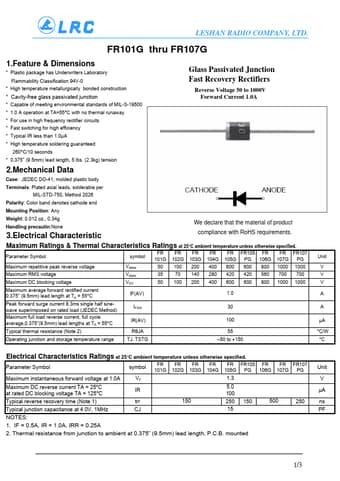

FR103G
Feature
& Dimensions
- Plastic package has Underwriters Laboratory Flammability Classification 94V-0
- High temperature metallurgically bonded construction
- Cavity-free glass passivated junction
- Capable of meeting environmental standards of MIL-S-19500
- 1.0 A operation at TA=55°C with no thermal runaway
- For use in high frequency rectifier circuits
- Fast switching for high efficiency
- Typical IR less than 1.0µA
- High temperature soldering guaranteed:
260°C/10 seconds
Glass Passivated Junction Fast Recovery Rectifiers
Reverse Voltage 50 to 1000V Forward Current 1.0A
- 0.375" (9.5mm) lead length, 5 lbs. (2.3kg) tension
2.Mechanical Data
Case: JEDEC DO-41, molded plastic body Terminals: Plated axial leads, solderable per
MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Mounting Position: Any Weight: 0.012 oz., 0.34g Handling precautin:None
3.Electrical Characteristic
We declare that the material of product pliance with Ro HS requirements.
Maximum Ratings &...
