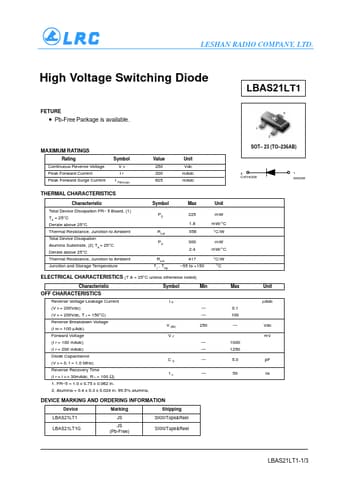

LBAS21LT1
LESHAN RADIO PANY, LTD.
High Voltage Switching Diode
FETURE
- Pb-Free Package is available.
1 2
MAXIMUM RATINGS Rating
Continuous Reverse Voltage Peak Forward Current Peak Forward Surge Current
Symbol VR IF
I FM(surge)
Value 250 200 625
Unit Vdc m Adc m Adc
SOT- 23 (TO- 236AB)
3 CATHODE
1 ANODE
THERMAL CHARACTERISTICS
Characteristic
Total Device Dissipation FR- 5 Board, (1) TA = 25°C Derate above 25°C Thermal Resistance, Junction to Ambient Total Device Dissipation Alumina Substrate, (2) TA = 25°C Derate above 25°C Thermal Resistance, Junction to Ambient Junction and Storage Temperature
Symbol PD
RθJA PD
RθJA TJ , Tstg
Max Unit
225 m W 1.8 m W/°C 556 °C/W
300 m W 2.4 m W/°C
- 55 to +150
°C/W °C
ELECTRICAL CHARACTERISTICS (T A = 25°C unless otherwise noted)
Characteristic OFF CHARACTERISTICS
Reverse Voltage Leakage Current (V R = 200Vdc) (V R = 200Vdc, T J = 150°C) Reverse Breakdown Voltage (I BR = 100 µAdc) Forward Voltage (I F = 100 m Adc) (I F = 200 m Adc)...
