S-LBAS516T1G, High-speed Diode

LESHAN RADIO COMPANY, LTD.High-speed Diode .
The LBAS516T1 is a high-speed switching diode fabricated in planar technology and encapsulated in the SOD523(SC79) SMD plastic package.

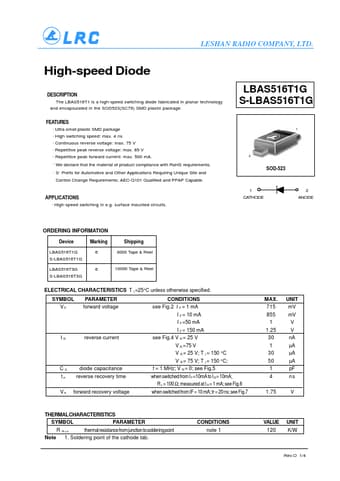

datasheet Preview Page 1 from Datasheet4u.com

S-LBAS516T1G-LeshanRadioCompany.pdf

S-LBAS516T1G Datasheet Preview — Preview of S-LBAS516T1G PDF

Datasheet Details

Part number:

S-LBAS516T1G

Manufacturer:

Leshan Radio Company

File Size:

189.57 KB

Description:

High-speed Diode

Features

* Ultra small plastic SMD package
* High switching speed: max. 4 ns
* Continuous reverse voltage: max. 75 V
* Repetitive peak reverse voltage: max. 85 V
* Repetitive peak forward current: max. 500 mA.
* We declare that the material of product compliance with RoHS requirements

Applications

* Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable. APPLICATIONS
* High-speed switching in e. g. surface mounted circuits. LBAS516T1G S-LBAS516T1G 1 2 SOD-523 1 CATHODE 2 ANODE ORDERING INFORMATION Device Marking Shipping LBAS516T1G S-LBAS516T1G L
