SM1100A Datasheet, Rectifiers, Leshan Radio Company

SM1100A Features

  • Rectifiers Schottky Barrier Rectifiers Reverse Voltage 20 to100V Forward Current 1.0A
  • Plastic package has Underwriters Laboratory Flammability Classification 94V-0
  • Low power

PDF File Details

Part number:

SM1100A

Manufacturer:

Leshan Radio Company

File Size:

193.75kb

Download:

📄 Datasheet

Description:

Schottky barrier rectifiers.

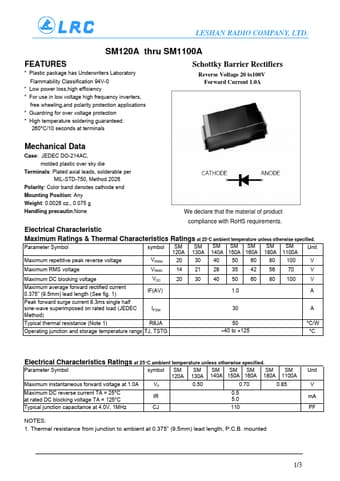

Datasheet Preview: SM1100A 📥 Download PDF (193.75kb)
Page 2 of SM1100A Page 3 of SM1100A

SM1100A Application

  • Applications
  • Guardring for over voltage protection
  • High temperature soldering guaranteed: 260°C/10 seconds at terminals Mechanic
