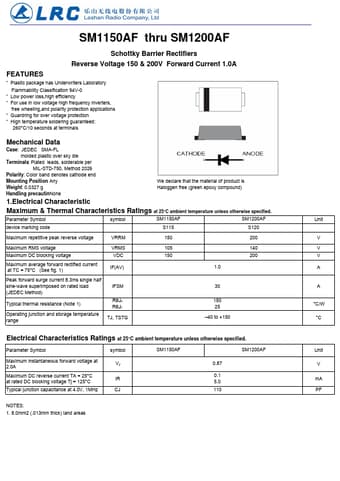

SM1200AF
FEATURES
- Plastic package has Underwriters Laboratory
Flammability Classification 94V-0
- Low power loss,high efficiency
- For use in low voltage high frequency inverters, free wheeling,and polarity protection applications
- Guardring for over voltage protection
- High temperature soldering guaranteed:
260°C/10 seconds at terminals
Mechanical Data
Case: JEDEC SMA-FL molded plastic over sky die
Terminals: Plated leads, solderable per MIL-STD-750, Method 2026
Polarity: Color band denotes cathode end Mounting Position: Any Weight: 0.0327 g Handling precautin:None
We declare that the material of product is Haloggen free (green epoxy pound)
1.Electrical Characteristic
Maximum & Thermal Characteristics Ratings at 25°C ambient temperature unless otherwise specified.
Parameter Symbol symbol
SM1150AF
SM1200AF device marking code
S115
S120
Maximum repetitive peak reverse voltage
VRRM
Maximum RMS voltage Maximum DC blocking voltage
Maximum average forward rectified...
