SM130AF, SM120AF, Schottky Barrier Rectifiers

SM120AF thru SM1100AF Schottky Barrier Rectifiers Reverse Voltage 20 to100V Forward Current 1.0A .

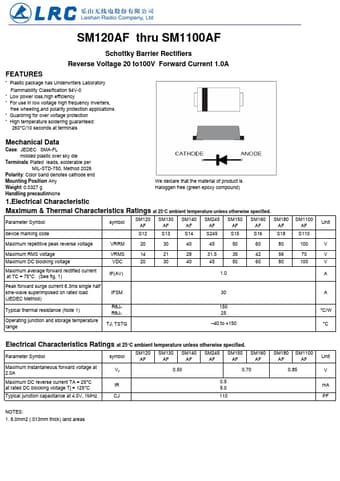

datasheet Preview Page 1 from Datasheet4u.com

SM120AF-LeshanRadioCompany.pdf

SM130AF Datasheet Preview — This datasheet PDF includes multiple part numbers: SM130AF, SM120AF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SM130AF, SM120AF

Manufacturer:

Leshan Radio Company

File Size:

360.83 KB

Description:

Schottky Barrier Rectifiers

Note:

This datasheet PDF includes multiple part numbers: SM130AF, SM120AF.
Please refer to the document for exact specifications by model.

Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-0
* Low power loss,high efficiency

Applications

* Guardring for over voltage protection
* High temperature soldering guaranteed: 260°C/10 seconds at terminals Mechanical Data Case: JEDEC SMA-FL molded plastic over sky die Terminals: Plated leads, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Mounting Po
