SM150A, SM120A Schottky Barrier Rectifiers

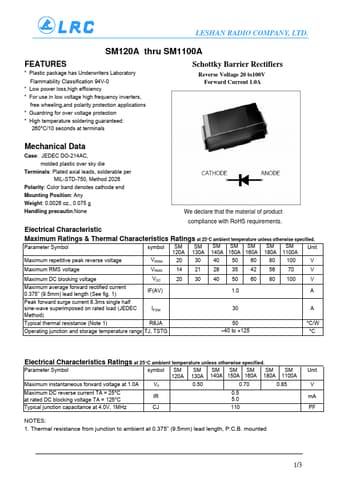

📥 Download Datasheet  Datasheet Preview Page 1

Description

SM120A thru SM1100A .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SM150A, SM120A. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
SM150A, SM120A
Manufacturer
Leshan Radio Company
File Size
193.75 KB
Datasheet
SM120A-LeshanRadioCompany.pdf
Description
Schottky Barrier Rectifiers
Note
This datasheet PDF includes multiple part numbers: SM150A, SM120A.
Please refer to the document for exact specifications by model.

Features

* Schottky Barrier Rectifiers Reverse Voltage 20 to100V Forward Current 1.0A
* Plastic package has Underwriters Laboratory Flammability Classification 94V-0
* Low power loss,high efficiency
* For use in low voltage high frequency inverters, free wheeling,and polarity protection applicat

Applications

* Guardring for over voltage protection
* High temperature soldering guaranteed: 260°C/10 seconds at terminals Mechanical Data Case: JEDEC DO-214AC, molded plastic over sky die Terminals: Plated axial leads, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Mo
