SM150AF, SM120AF - Schottky Barrier Rectifiers

SM150AF Description

SM120AF thru SM1100AF Schottky Barrier Rectifiers Reverse Voltage 20 to100V Forward Current 1.0A .

SM150AF Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-0
* Low power loss,high efficiency

SM150AF Applications

* Guardring for over voltage protection
* High temperature soldering guaranteed: 260°C/10 seconds at terminals Mechanical Data Case: JEDEC SMA-FL molded plastic over sky die Terminals: Plated leads, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Mounting Po

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SM150AF, SM120AF. Please refer to the document for exact specifications by model.

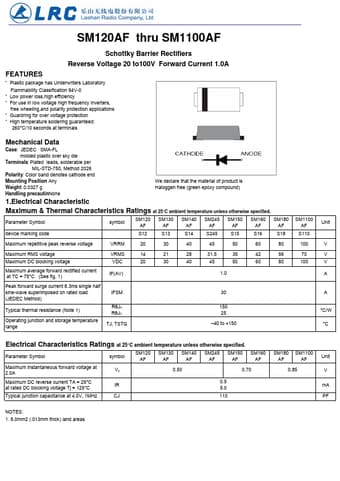

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SM150AF, SM120AF
Manufacturer
Leshan Radio Company
File Size
360.83 KB
Datasheet
SM120AF-LeshanRadioCompany.pdf
Description
Schottky Barrier Rectifiers
Note
This datasheet PDF includes multiple part numbers: SM150AF, SM120AF.
Please refer to the document for exact specifications by model.
