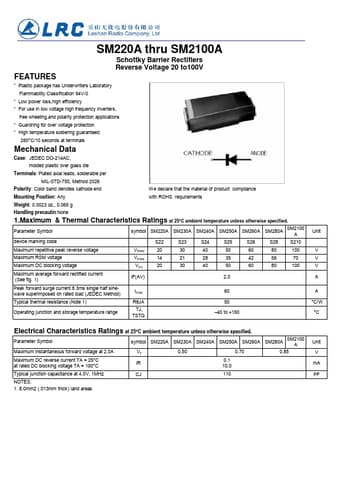

SM2100A
FEATURES
Schottky Barrier Rectifiers Reverse Voltage 20 to100V
- Plastic package has Underwriters Laboratory
Flammability Classification 94V-0
- Low power loss,high efficiency
- For use in low voltage high frequency inverters, free wheeling,and polarity protection applications
- Guardring for over voltage protection
- High temperature soldering guaranteed:
260°C/10 seconds at terminals
Mechanical Data
Case: JEDEC DO-214AC, molded plastic over glass die
Terminals: Plated axial leads, solderable per
MIL-STD-750, Method 2026
Polarity: Color band denotes cathode end
We declare that the material of product pliance
Mounting Position: Any with ROHS requirements
Weight: 0.0023 oz., 0.065 g
Handling precautin:None
1.Maximum & Thermal Characteristics Ratings at 25°C ambient temperature unless otherwise specified.
Parameter Symbol symbol
SM220A
SM230A
SM240A
SM250A
SM260A
SM280A
SM2100 A device marking code
S22 S23 S24 S25 S26 S28 S210
Maximum repetitive peak reverse...
