LT3650-8.2 High Voltage 2 Amp Monolithic Li-Ion Battery Charger

The LT®3650 is a complete monolithic 2-cell Li-Ion/Polymer battery charger that operates over a 9V to 32V input voltage range (11.5V minimum start-up voltage). The LT3650 provides a constant-current/constant-voltage charge characteristic, with maximum charge current externally programmable up to 2A,.

LT3650-8.2 Features

* n Wide Input Voltage Range: 9V to 32V (40V Absolute Maximum) n Programmable Charge Current: Up to 2A n User-Selectable Termination: C/10 or Onboard Termination Timer n Dynamic Charge Rate Programming/Soft-Start Pin n Programmable Input Current Limit n 1MHz Fixed Frequency n Average Current Mode Cont

LT3650-82_LinearTechnologyCorporation.pdf

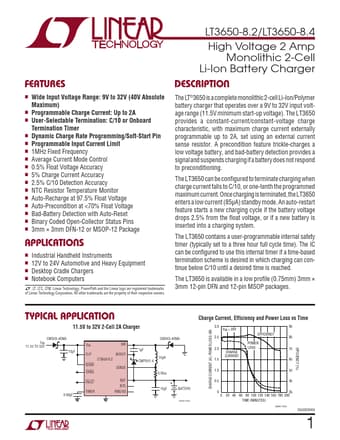

LT3650-8.2 Datasheet Preview — This datasheet PDF includes multiple part numbers: LT3650-8.2, LT3650-82. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LT3650-8.2, LT3650-82

Manufacturer:

Linear Technology Corporation

File Size:

278.33 KB

Description:

High voltage 2 amp monolithic li-ion battery charger.

Note:

This datasheet PDF includes multiple part numbers: LT3650-8.2, LT3650-82.
Please refer to the document for exact specifications by model.
