LTC2754

Quad 12-Bit SoftSpan Iout DACs

Linear Technology Corporation

LTC2754 Features

* n n n n n n n n n n n Program or Pin-Strap Six Output Ranges 0V to 5V, 0V to 10V,

* 2.5V to 7.5V, ±2.5V, ±5V, ±10V Maximum 16-Bit INL Error: ±1 LSB over Temperature Guaranteed Monotonic over Temperature Low Glitch Impulse 0.26nV

* s (3V), 1.25nV

* s (5V) Serial Readback of All On

LTC2754 General Description

The LTC®2754 is a family of quad 12- and 16-bit multiplying serial-input, current-output digital-to-analog converters. They operate from a single 3V to 5V supply and are guaranteed monotonic over temperature. The LTC2754A-16 provides full 16-bit performance (±1LSB INL and DNL, max) over temperature .

LTC2754 Datasheet (550.11 KB)

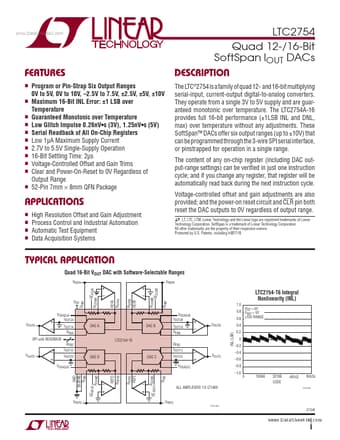

LTC2754 Datasheet Preview — Preview of LTC2754 PDF

Datasheet Details

Part number:

LTC2754

Manufacturer:

Linear Technology Corporation

File Size:

550.11 KB

Description:

Quad 12-bit softspan iout dacs.
