LT1100 Precision/ Chopper-Stabilized Instrumentation Amplifier

LT1100 Description

LTC1100 Precision, Chopper-Stabilized Instrumentation Amplifier .

LT1100 Features

* s s s s s s s s s s DESCRIPTIO Offset Voltage: 10µV Max Offset Voltage Drift: 50nV/°C Max Bias Current: 50pA Max Offset Current: 50pA Max Gain Nonlinearity: 8ppm Max Gain Error: ±0.05% Max CMRR: 104dB 0.1Hz to 10Hz Noise: 2µVP-P Single 5V Supply Operation 8-Pin MiniDIP The LTC1100 is a high preci

LT1100 Applications

* Information, Single Supply Operation. Note 3: Please consult Linear Technology Marketing. W BLOCK DIAGRA S 2 R 7 5 (V +) 99R 1 99R 2 90R 9R 4 10 (V+) 9R R 14 90R
* 3 R
* +
* 8 6 R 13 + + 4 (V
* ) R = 2.5k 3 6
* 15 11 + 7 (V
* ) R = 2.5k LT

📥 Download Datasheet

Preview of LT1100 PDF

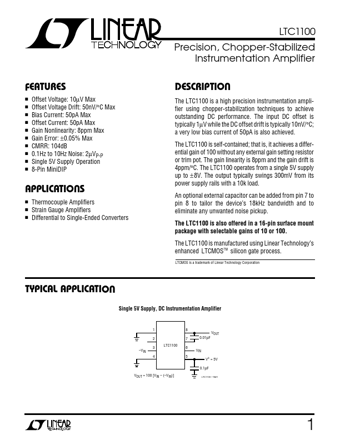

datasheet Preview Page 2 datasheet Preview Page 3
