LT1102 - High Speed/ Precision/ JFET Input Instrumentation Amplifier(Fixed Gain=10 or 100)

This page provides the datasheet information for the LT1102, a member of the LT1 High Speed/ Precision/ JFET Input Instrumentation Amplifier(Fixed Gain=10 or 100) family.

Datasheet Summary

Features

  • Slew Rate: 30V/μs.
  • Gain-Bandwidth Product: 35MHz.
  • Settling Time (0.01%): 3μs.
  • Overdrive Recovery: 0.4μs.
  • Gain Error: 0.05% Max.
  • Gain Drift: 5ppm/°C.
  • Gain Nonlinearity: 16ppm Max.
  • Offset Voltage (Input + Output): 600μV Max.
  • Drift with Temperature: 2μV/°C.
  • Input Bias Current: 40pA Max.
  • Input Offset Current: 40pA Max.
  • Drift with Temperature (to 70°C): 0.5pA/°C U.

📥 Download Datasheet

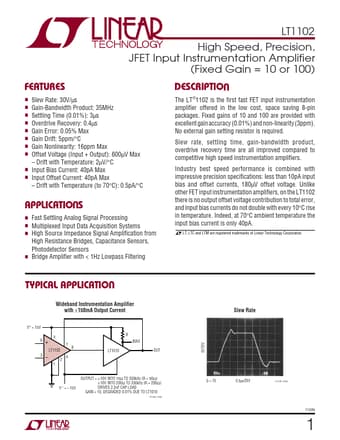

Datasheet preview – LT1102

Datasheet Details

Part number LT1102
Manufacturer Linear Technology
File Size 179.28 KB
Description High Speed/ Precision/ JFET Input Instrumentation Amplifier(Fixed Gain=10 or 100)
Datasheet download datasheet LT1102 Datasheet
