LT1103 - Offline Switching Regulator

This page provides the datasheet information for the LT1103, a member of the LT1 Offline Switching Regulator family.

Datasheet Summary

Description

The LT®1103 Offline Switching Regulator is designed for high input voltage applications using an external FET switch whose source is driven by the open collector output of the LT1103.

The LT1103 is optimized for 15W to 100W applications.

Features

  • s s s s s s s s s s s.

📥 Download Datasheet

Datasheet preview – LT1103

Datasheet Details

Part number LT1103
Manufacturer Linear Technology
File Size 452.49 KB
Description Offline Switching Regulator
Datasheet download datasheet LT1103 Datasheet
Additional preview pages of the LT1103 datasheet.

📁 Similar Datasheet

  • LT1101 - Single Supply Instrumentation Amplifier (Linear)
  • LT1112 - Picoamp Input Op Amps (Linear)
  • LT1113 - JFET Input Op Amp (Linear)
  • LT1114 - Picoamp Input Op Amps (Linear)
  • LT1115 - Audio Op Amp (Linear)
  • LT1121 - Micropower Low Dropout Regulators (Linear)
  • LT1121-3.3 - Micropower Low Dropout Regulators (Linear)
  • LT1121-5 - Micropower Low Dropout Regulators (Linear)
  • LT1122 - JFET Input Operational Amplifier (Linear)
  • LT1124 - High Speed Precision Op Amps (Linear)
Other Datasheets by Linear Technology
  • LT1100 - Precision/ Chopper-Stabilized Instrumentation Amplifier
  • LT1102 - High Speed/ Precision/ JFET Input Instrumentation Amplifier(Fixed Gain=10 or 100)
  • LT1105 - Offline Switching Regulator
  • LT1106 - Micropower Step-Up DC/DC Converter for PCMCIA Card Flash Memory
  • LT1107 - Micropower DC/DC Converter Adjustable and Fixed 5V/ 12V
  • LT1108 - Micropower DC/DC Converter
  • LT1108-12 - Micropower DC/DC Converter
  • LT1109 - Micropower Low Cost DC/DC Converter Adjustable and Fixed 5V/ 12V

Full PDF Text Transcription

Click to expand full text

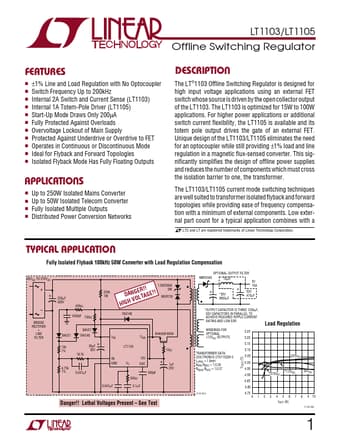

LT1103/LT1105 Offline Switching Regulator FEATURES s s s s s s s s s s s DESCRIPTION The LT®1103 Offline Switching Regulator is designed for high input voltage applications using an external FET switch whose source is driven by the open collector output of the LT1103. The LT1103 is optimized for 15W to 100W applications. For higher power applications or additional switch current flexibility, the LT1105 is available and its totem pole output drives the gate of an external FET. Unique design of the LT1103/LT1105 eliminates the need for an optocoupler while still providing ±1% load and line regulation in a magnetic flux-sensed converter.
