LT1140A, LT1 Advanced Low Power 5V RS232 Drivers/Receivers with Small Capacitors

Linear Technology

Description

LT1130A/LT1140A Series Advanced Low Power 5V RS232 Drivers/Receivers with Small Capacitors .

📥 Download Datasheet

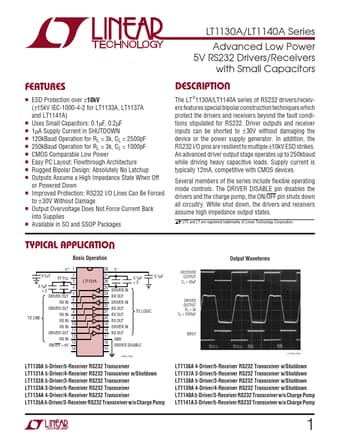

LT1140A Datasheet Preview — This datasheet PDF includes multiple part numbers: LT1140A, LT1. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: LT1140A, LT1
Manufacturer: Linear Technology
File Size: 199.18 KB
Datasheet: LT1-130.pdf
Description: Advanced Low Power 5V RS232 Drivers/Receivers with Small Capacitors
Note: This datasheet PDF includes multiple part numbers: LT1140A, LT1.
Please refer to the document for exact specifications by model.

Features

* s DESCRIPTIO s s s s s s s s s s s ESD Protection over ±10kV (±15kV IEC-1000-4-2 for LT1133A, LT1137A and LT1141A) Uses Small Capacitors: 0.1µF, 0.2µF 1µA Supply Current in SHUTDOWN 120kBaud Operation for RL = 3k, CL = 2500pF 250kBaud Operation for RL = 3k, CL = 1000pF CMOS Comparable Low Powe
