LT1880, Picoamp Input Current Precision Op Amp

.
The.

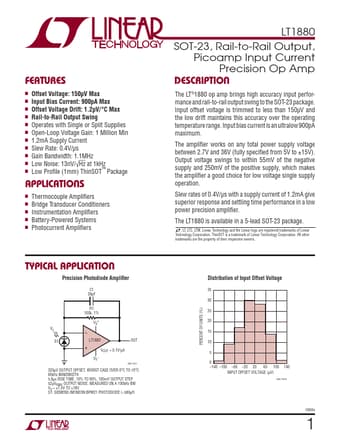

datasheet Preview Page 1 from Datasheet4u.com

LT1880-LinearTechnology.pdf

LT1880 Datasheet Preview — Preview of LT1880 PDF

Datasheet Details

Part number:

LT1880

Manufacturer:

Linear Technology

File Size:

386.32 KB

Description:

Picoamp Input Current Precision Op Amp

Features

* n Offset Voltage: 150μV Max n Input Bias Current: 900pA Max n Offset Voltage Drift: 1.2μV/°C Max n Rail-to-Rail Output Swing n Operates with Single or Split Supplies n Open-Loop Voltage Gain: 1 Million Min n 1.2mA Supply Current n Slew Rate: 0.4V/μs n Gain Bandwidth: 1.1MHz n Low Noise: 13nV/√Hz at

Applications

* n Thermocouple Ampliﬁers n Bridge Transducer Conditioners n Instrumentation Ampliﬁers n Battery-Powered Systems n Photocurrent Ampliﬁers TYPICAL APPLICATION Precision Photodiode Ampliﬁer C1 39pF R1 100k, 1% VS+ VL
* S1 LT1880 OUT + VOUT = 0.1V/μA VS
* 1880 TA01 320μV OUTPUT OF
