LT1920, LT1 Datasheet - Linear Technology

LT1920, LT1, Single Resistor Gain Programmable/ Precision Instrumentation Amplifier

LT1920 Single Resistor Gain Programmable, Precision Instrumentation Amplifier .

datasheet Preview Page 1 from Datasheet4u.com

LT1-920.pdf

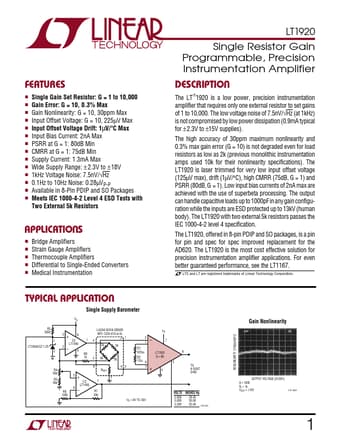

LT1920 Datasheet Preview — This datasheet PDF includes multiple part numbers: LT1920, LT1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LT1920, LT1

Manufacturer:

Linear Technology

File Size:

329.23 KB

Description:

Single Resistor Gain Programmable/ Precision Instrumentation Amplifier

Note:

This datasheet PDF includes multiple part numbers: LT1920, LT1.
Please refer to the document for exact specifications by model.

Features

* s s s s s s s s s s s s s s DESCRIPTIO Single Gain Set Resistor: G = 1 to 10,000 Gain Error: G = 10, 0.3% Max Gain Nonlinearity: G = 10, 30ppm Max Input Offset Voltage: G = 10, 225µV Max Input Offset Voltage Drift: 1µV/°C Max Input Bias Current: 2nA Max PSRR at G = 1: 80dB Min CMRR at G = 1: 75dB

Applications

* For even better guaranteed performance, see the LT1167. , LTC and LT are registered trademarks of Linear Technology Corporation. TYPICAL APPLICATIO VS R5 392k 1 LT1634CCZ-1.25 2 2 Single Supply Barometer Gain Nonlinearity
* 5k R6 1k 5k R1 825Ω 2 6 R4 50k R3 50k 6 R8 100k RSET 5 5k 5k R2 1
