FEATURES
s s s s s s s s s s s

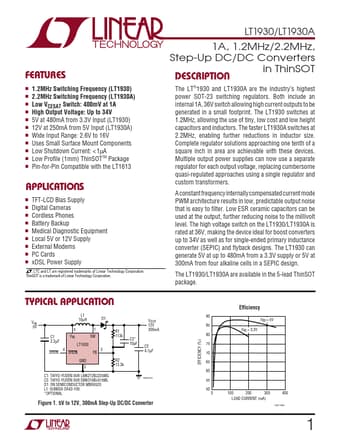

LT1930/LT1930A 1A, 1.2MHz/2.2MHz, Step-Up DC/DC Converters in ThinSOT DESCRIPTIO
The LT®1930 and LT1930A are the industry’s highest power SOT-23 switching regulators. Both include an internal 1A, 36V switch allowing high current outputs to be generated in a small footprint. The LT1930 switches at 1.2MHz, allowing the use of tiny, low cost and low height capacitors and inductors. The faster LT1930A switches at 2.2MHz, enabling further reductions in inductor size. Complete regulator solutions approaching one tenth of a square inch in area are achievable with these devices. Multiple output power supplies can now use a separate regulator for each output voltage, replacing cumbersome quasi-regulated approaches using a single regulator and custom transformers.
LT1930 Datasheet
