LT1931A - 1.2MHz/2.2MHz Inverting DC/DC Converters

Datasheet Summary

Features

s s s s s s s s s s.

Linear Technology

📥 Download Datasheet

Datasheet Details

Part number	LT1931A
Manufacturer	Linear Technology
File Size	423.68 KB
Description	1.2MHz/2.2MHz Inverting DC/DC Converters
Datasheet	LT1931A Datasheet
Additional preview pages of the LT1931A datasheet.

📁 Similar Datasheet

LT1938 - Step-Down Switching Regulator (Linear)
LT1912 - Step-Down Switching Regulator (Linear Technology Corporation)
LT1913 - Step-Down Switching Regulator (Linear)
LT1940L - 1.1MHz Step-Down Switching Regulator (Linear)
LT1942 - Quad DC/DC Converter (Linear)
LT1943 - High Current Quad Output Regulator (Linear)
LT1944-1 - Dual Micropower Step-Up DC/DC Converter (Linear)
LT1948 - DC/DC Converter (LINEAR)
LT1963 - Fast Transient Response LDO Regulators (Linear)
LT1963A - Fast Transient Response LDO Regulators (Linear)

Other Datasheets by Linear Technology

LT1931 - 1.2MHz/2.2MHz Inverting DC/DC Converters
LT1930 - 1A/ 1.2MHz/2.2MHz/ Step-Up DC/DC Converters
LT1930A - Constant-Current/ Constant-Voltage 1.4MHz Step-Up DC/DC Converter
LT1932 - Constant-Current DC/DC LED Driver
LT1933 - Step-Down Switching Regulator
LT1934 - Micropower Step-Down Switching Regulators in ThinSOT
LT1934-1 - Micropower Step-Down Switching Regulators in ThinSOT
LT1935 - DC/DC Converter

Full PDF Text Transcription

Click to expand full text

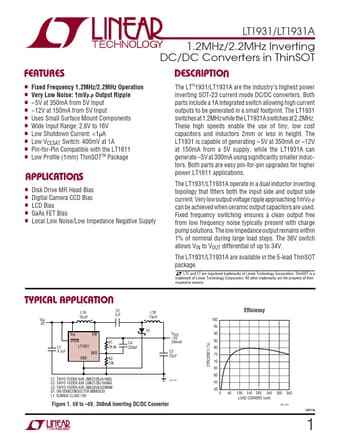

LT1931/LT1931A 1.2MHz/2.2MHz Inverting DC/DC Converters in ThinSOT FEATURES s s s s s s s s s s DESCRIPTIO Fixed Frequency 1.2MHz/2.2MHz Operation Very Low Noise: 1mVP-P Output Ripple – 5V at 350mA from 5V Input –12V at 150mA from 5V Input Uses Small Surface Mount Components Wide Input Range: 2.6V to 16V Low Shutdown Current: <1µA Low VCESAT Switch: 400mV at 1A Low Profile (1mm) ThinSOTTM Package Pin-for-Pin Compatible with the LT1611 U APPLICATIO S s s s s s The LT®1931/LT1931A are the industry’s highest power inverting SOT-23 current mode DC/DC converters. Both parts include a 1A integrated switch allowing high current outputs to be generated in a small footprint. The LT1931 switches at 1.2MHz while the LT1931A switches at 2.2MHz.

Published: Mar 22, 2005 |
