LT6119-1 - Current Sense Amplifier / Reference and Comparators

Product Overview

Linear Technology

Datasheet Details

Part number	LT6119-1
Manufacturer	Linear Technology
File Size	319.50 KB
Description	Current Sense Amplifier / Reference and Comparators
Datasheet	LT6119-1 Datasheet

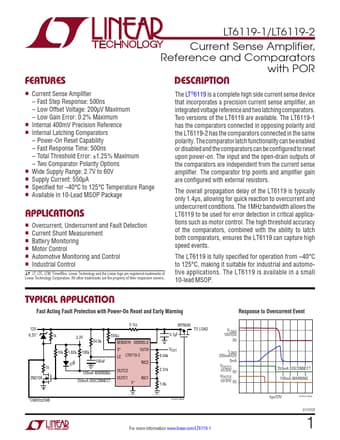

Additional preview pages of the LT6119-1 datasheet.

Product details

Description

n Current Sense Amplifier Fast Step Response: 500ns Low Offset Voltage: 200µV Maximum Low Gain Error: 0.2% Maximum n Internal 400mV Precision Reference n Internal Latching Comparators Power-On Reset Capability Fast Response Time: 500ns Total Threshold Error: ±1.25% Maximum Two Comparator Polarity Options n Wide Supply Range: 2.7V to 60V n Supply Current: 550µA n Specified for 40°C to 125°C Temperatu

Features

Current Sense Amplifier, Reference and Comparators with POR.
