LT6600-20 - Very Low Noise Differential Amplifier and 20MHz Lowpass Filter

LT6600-20 Description

www.DataSheet4U.com LT6600-20 Very Low Noise, Differential Amplifier and 20MHz Lowpass Filter .

LT6600-20 Features

* s s s s DESCRIPTIO s s s s s Programmable Differential Gain via Two External Resistors Adjustable Output Common Mode Voltage Operates and Specified with 3V, 5V, ±5V Supplies 0.5dB Ripple 4th Order Lowpass Filter with 20MHz Cutoff 76dB S/N with 3V Supply and 2VP-P Output Low Distortion, 2VP-P, 80

LT6600-20 Applications

* High Speed Test and Measurement Equipment Medical Imaging Drop-in Replacement for Differential Amplifiers , LTC and LT are registered trademarks of Linear Technology Corporation. TYPICAL APPLICATIO LT6600-20 5V 0.1µF RIN 402Ω 1 7 0.01µF VIN RIN 402Ω 2 8 3 An 8192 Point FFT Spectrum A/D LTC1748 5V

📥 Download Datasheet

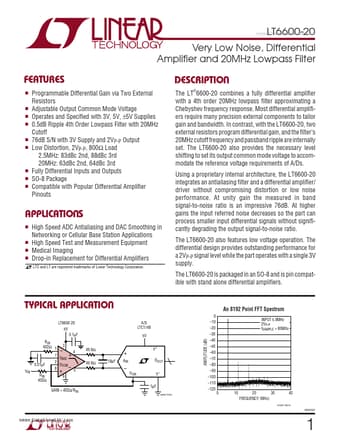

Preview of LT6600-20 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LT6600-20
Manufacturer
Linear Technology
File Size
244.54 KB
Datasheet
LT6600-20_LinearTechnology.pdf
Description
Very Low Noise Differential Amplifier and 20MHz Lowpass Filter
