LT6657 Datasheet - Linear Technology

LT6657 - Buffered Reference

The LT®6657 is a precision voltage reference that combines robust operating characteristics with extremely low drift and low noise.

With advanced curvature compensation, this bandgap reference achieves 1.5ppm/°C drift with predictable temperature behavior, and an initial voltage accuracy of 0.1%.

It

LT6657 Features

* nn Low Drift nn A Grade: 1.5ppm/°C Max nn B Grade: 3ppm/°C Max nn Low Noise: nn 0.5ppmP-P (0.1Hz to 10Hz) nn 0.8ppmRMS (10Hz to 1kHz) nn Wide Supply Range to 40V nn Sources and Sinks 10mA Min nn Line Regulation: 0.2ppm/V nn Load Regulation: 2µV/mA nn Reverse Supply Protection nn Reverse Output Prote

LT6657-LinearTechnology.pdf

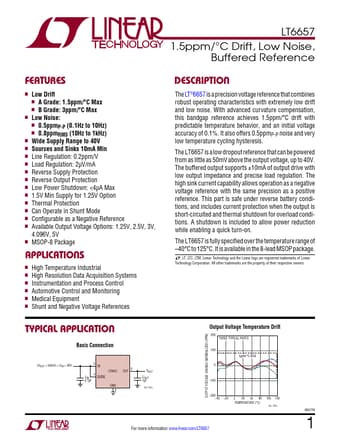

Preview of LT6657 PDF
LT6657 Datasheet Preview Page 2 LT6657 Datasheet Preview Page 3

Datasheet Details

Part number:

LT6657

Manufacturer:

Linear Technology

File Size:

1.19 MB

Description:

Buffered reference.
