LT8610

2.5A Synchronous Step-Down Regulator

LT8610 Features

* n Wide Input Voltage Range: 3.4V to 42V n Ultralow Quiescent Current Burst Mode® Operation: 2.5μA IQ Regulating 12VIN to 3.3VOUT Output Ripple < 10mVP-P n High Efficiency Synchronous Operation: 96% Efficiency at 1A, 5VOUT from 12VIN 94% Efficiency at 1A, 3.3VOUT from 12VIN n Fast Minimum

LT8610 General Description

The LT®8610 is a compact, high efficiency, high speed synchronous monolithic step-down switching regulator that consumes only 2.5µA of quiescent current. Top and bottom power switches are included with all necessary circuitry to minimize the need for external components. Low ripple Burst Mode operat.

LT8610 Datasheet (300.99 KB)

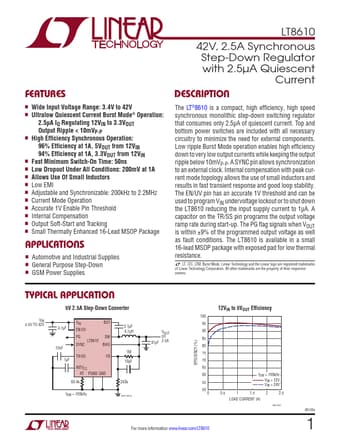

Preview of LT8610 PDF

Datasheet Details

Part number:

LT8610

Manufacturer:

Linear Technology

File Size:

300.99 KB

Description:

2.5a synchronous step-down regulator.
