LTC1605

16-Bit/ 100ksps/ Sampling ADC

LTC1605 Features

* nn Single 5V Supply nn Bipolar Input Range: ±10V nn Power Dissipation: 55mW Typ nn Guaranteed No Missing Codes nn Sample Rate: 100ksps nn Integral Nonlinearity: ±2.0LSB Max nn Signal-to-Noise Ratio: 86dB Typ nn Operates with Internal or External Reference nn Internal Synchronized Clock nn Improved 2

LTC1605 General Description

The LTC®1605 is a 100ksps, sampling 16-bit A/D converter that draws only 55mW (typical) from a single 5V supply. This easy-to-use device includes sample-and-hold, precision reference, switched capacitor successive approximation A/D and trimmed internal clock. The LTC1605’s input range is an industry.

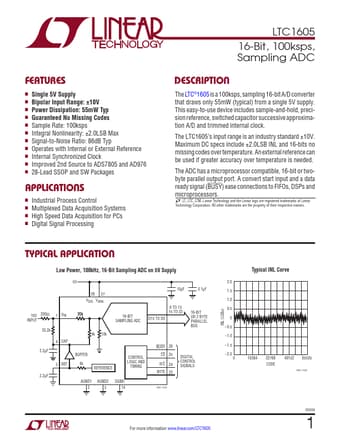

LTC1605 Datasheet (389.82 KB)

Preview of LTC1605 PDF

Datasheet Details

Part number:

LTC1605

Manufacturer:

Linear Technology

File Size:

389.82 KB

Description:

16-bit/ 100ksps/ sampling adc.
