LTC2170-14 - Low Power Quad ADC

Product Overview

Linear Technology

Datasheet Details

Part number	LTC2170-14
Manufacturer	Linear Technology
File Size	1.48 MB
Description	Low Power Quad ADC
Datasheet	LTC2170-14 Datasheet
Note	This datasheet PDF includes multiple part numbers: LTC2170-14, LTC2172-14. Please refer to the document for exact specifications by model.

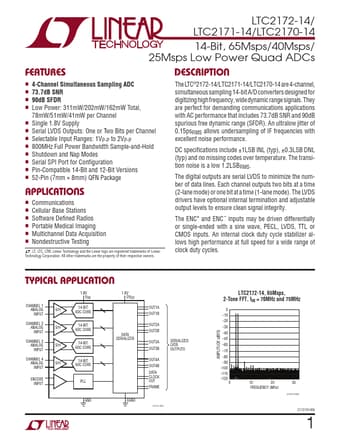

Additional preview pages of the LTC2170-14 datasheet.

Product details

Description

The LTC®2172-14/LTC2171-14/LTC2170-14 are 4-channel, simultaneous sampling 14-bit A/D converters designed for digitizing high frequency, wide dynamic range signals.

Features

n 4-Channel Simultaneous Sampling ADC n 73.7dB SNR n 90dB SFDR n Low Power: 311mW/202mW/162mW Total, 78mW/51mW/41mW per Channel n Single 1.8V Supply n Serial LVDS Outputs: One or Two Bits per Channel n Selectable Input Ranges: 1VP-P to 2VP-P n 800MHz Full Power Bandwidth Sample-and-Hold n Shutdown and Nap Modes n Serial SPI Port for Configuration n Pin-Compatible 14-Bit and 12-Bit Versions n 52-Pin (7mm × 8mm) QFN Package.
