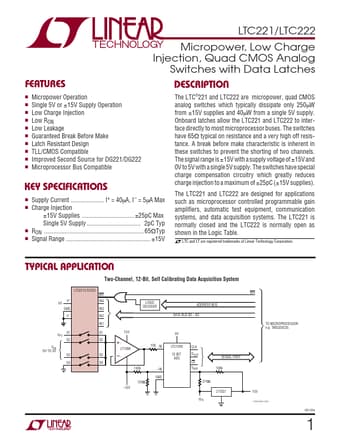

LTC222 Datasheet, Switches, Linear Technology

LTC222 Features

• Switches
• Micropower Operation
• Single 5V or ±15V Supply Operation
• Low Charge Injection
• Low RON
• Low Leakage
• Guaranteed Break Before Make

PDF File Details

Part number:

LTC222

Manufacturer:

Linear Technology

File Size:

145.51kb

Download:

📄 Datasheet

Description:

Quad cmos analog switches.

LTC222 Application

• Applications such as microprocessor controlled programmable gain amplifiers, automatic test equipment, communication systems, and data acquisition s
